6V9932

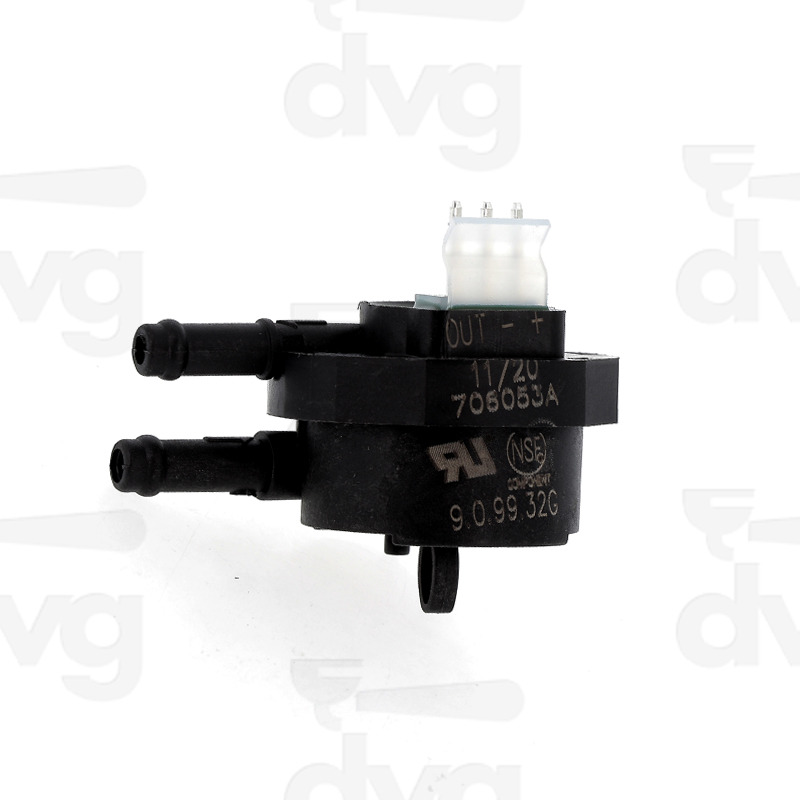

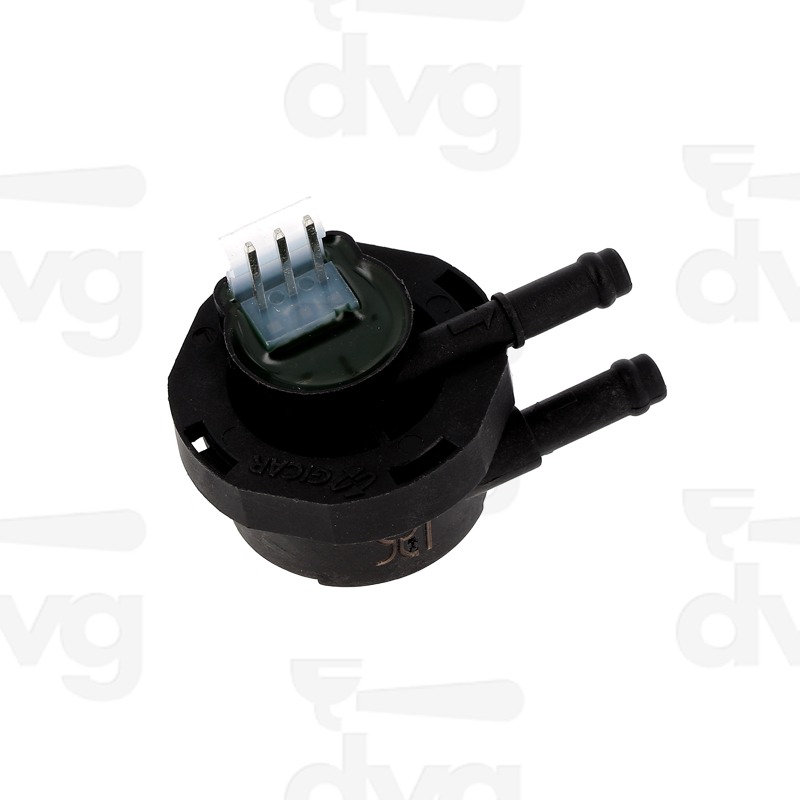

HORIZONTAL FLOWMETER GICAR PG7 D.1.8 O- + LOW PRESSURE HORIZONTAL OUTLET NSF
Gicar code 9.0.99.32G
Suitable to Astra, Bianchi (DIVA, GAIA, GAIA TOUCH, BVM 921, BVM 931, BVM 952, BVM 972, LEI 200, LEI 400, LEI 700, LEI SA, PEGASO, POLARIS), Necta vending machines. Applications: family coffee machines and automatic beverage dispensers. NSF and UL approved. Nozzle: diametrer 1,8 mm. Threads: external d.7mm, internal d.5mm Rubber holder. Rated voltage: 4,5÷24VDC. Doses per Pulse: 0,77cc/Pulse, 1300 Pulse/l. Working position: horizontal.
